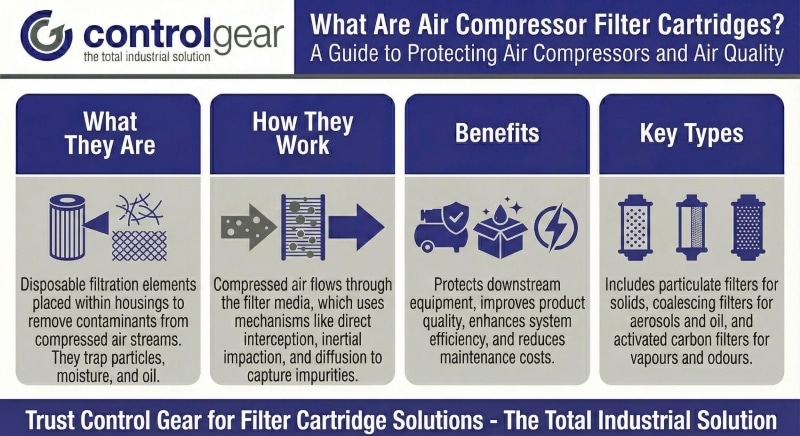

What are Air Compressor Filter Cartridges? A Guide to Protecting Air Compressors and Air Quality
Compressed air is used in many industries to power tools, drive machinery, and maintain precision in manufacturing processes. However, compressed air can contain dust, oil mist, and vapours that can damage equipment and compromise product quality. That is why air compressor filter cartridges are key. They remove contaminants from compressed air used across industries where air quality is critical.
Table of Contents
Why do you Need Compressed Air Filtration?
Air compressor filter cartridges ensure the optimal performance of air compressors and protect downstream equipment. Oil and moisture can accumulate in the compressed air system without proper air filtration, resulting in higher maintenance costs, reduced efficiency, and potential product contamination.
Filter cartridges catch these impurities, protect equipment, and ensure that compressed air quality meets the high standards required in industries where high-purity air is essential, such as pharmaceutical manufacturing.
Types of Compressed Air Contamination
Many industries rely on optimal compressed air and system performance to comply with manufacturing regulations and safety standards. Air contamination can lead to serious consequences, downtime, and losses. Below are the most common sources of contamination:
- Solid particles, such as dust and dirt, come from ambient air, corroded pipes, or system wear and tear. They cause abrasion, clogged filters, and reduced system efficiency.
- Oil contamination from lubricated compressors or residual oil in piping may result in reduced air purity, contaminated end products and more maintenance for downstream equipment.
- Moisture enters compressed air through ambient humidity or condensation. It causes corrosion, bacterial growth, and shortened life of equipment and components.
- Chemical vapours and odours enter through polluted ambient air, industrial processes, or system leaks. Any contamination can impact final product quality if air purity is essential to maintaining production standards, such as food and pharmaceutical manufacturing.
How Air Compressor Filter Cartridges Work
The filtration process is simple but highly effective. As compressed air passes through the filter cartridge, various layers of filter material capture particles, coalesce oil mist, and adsorb vapours, ensuring that only clean air exits the system. This multi-stage filtration removes contaminants and keeps air quality high across all applications.

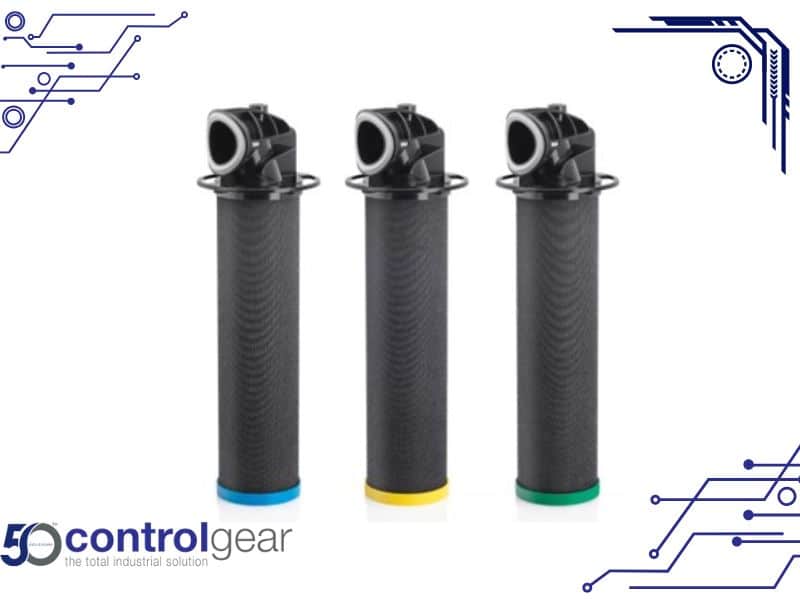

Types of Air Compressor Filter Cartridges
Particulate filters catch large particles like dust and dirt that, if left in the air stream, would damage compressor parts.
Coalescing filters capture oil mist and fine aerosols, which is especially important in oil-lubricated compressors where purity is critical.
Adsorption filters use activated carbon to remove remaining vapours and odours. This results in a high-purity air stream suitable for sensitive applications like food processing or pharmaceuticals, where odour-free and oil-free air is mandatory.
Selecting the correct filter element depends on the compressed air quality requirements of the application. For example, food-grade air requires more advanced filtration than basic particle removal.
What are the Benefits of a Good Air Filter?
Good air filters give you operational benefits – from better air quality to longer equipment life:
- Filters keep compressed air contaminant-free, critical in industries where air quality affects product quality.
- High-quality filters prevent particles and oil from reaching downstream equipment like valves, actuators, and tools. This extra protection reduces wear and extends equipment life.
- Clean filters reduce air pressure drops, allowing compressors to run more efficiently. Efficient air compressors consume less energy and reduce running costs.
- When air is contaminant-free, it reduces the load on the compressor system – making it run better and last longer.
When to Replace Air Compressor Filter Cartridges
Regular maintenance keeps filters performing at their best. Here are the signs it is time to replace your air compressor filter cartridge:
- A high-pressure drop across the filter means it is clogged. Clogging makes the compressor work harder, using more energy and wearing out faster. So, change the filter ASAP.
- The filters are no longer effective if you see visible contaminants, such as particles or oil droplets, in the compressed air output.
- During maintenance, inspect filters for signs of discolouration, wear or damage. If a filter looks worn out, it is time to replace it.
How to Choose the Best Air Compressor Filter Cartridge
Choosing the right filter cartridge involves the following:
- Size and Compatibility – Make sure the filter fits your compressor’s specs and is seated in the compressed air system.
- Filter Media – Different filter media, such as activated carbon or fibreglass, suit different filtration requirements. Choose according to your industry’s air purity standards.
- Flow Rate – Choose a filter to handle your compressor’s airflow volume without causing a big pressure drop.
- Environmental Conditions – more robust filters may perform better in dusty or oily environments.
OEM or Aftermarket Filters?
Original manufacturer equipment (OEM) filters are designed for specific air systems and ensure fit and warranty compliance. Although aftermarket filters may be less expensive, their quality varies. Genuine air filter cartridges are recommended for optimal system performance.
How to Maintain Air Compressor Filters
Filter cartridges need regular maintenance to ensure quality air and performance as well. Here is what to do:
- Establish a regular inspection schedule. Inspection frequency should reflect the compressor’s usage and its operating environment. Heavy usage in dirty work scenarios requires more frequent inspection and filter replacements. Regular checks will help detect wear or clogging early.
- Most manufacturers recommend replacing filters every 3 – 6 months, but this varies depending on usage and environmental conditions.
- Air compressor filters contain oils or chemicals, so they must be disposed of carefully according to local regulations, or recycling schemes should be used if available.
Busting Common Myths About Compressed Air Filter Cartridges
Air compressor filters are necessary but, despite their importance, many myths about them can compromise performance:
- Not all filters are created equal. Cheaper filters may save you money in the short term but can compromise air quality, increase energy costs, and wear out compressor parts faster.
- Some operators think filters can be left unchanged for a long time. However, clogged filters mean poor airflow, which puts more load on the compressor, making it less efficient.
Get a good filter, change it regularly, and enjoy an efficient compressor, low energy consumption, and good air output. Learn more about how to make your air compressor more efficient.
What is the Difference Between an Air Compressor Filter Cartridge and an Inline Filter?
An air compressor filter cartridge and a compressed air line filter are important for air quality. Each type of filter serves a slightly different purpose and is used in different parts of the system. Here are the differences:
| Filter Cartridge | Line Filter | |
| Location | In compressor | In air lines near point of use |
| Function | Cleans air and protects compressor | Cleans air and protects equipment |
| Air Quality Control | Sets the base level of air quality | Ensures high-quality air for sensitive applications |
In applications where air compressor filtration is critical, a filter cartridge and inline air filter work together to supply clean compressed air and protect the compressor and connected equipment from contaminants.
Get Optimal Air Quality and Energy Efficiency with Control Gear
Air compressor filter cartridges are a vital part of keeping clean air in compressed air systems, and they directly affect the life and efficiency of the compressor. From downstream equipment protection to optimal air quality, investing in high-quality air compressor filter cartridges and best practices is key. Contact Control Gear for advice on choosing the right compressor air filter cartridges for your application or to learn about Atlas Copco’s next-gen inpass filters that optimise air quality and energy savings.
